Standard and Optional Parts
Cooler: shell-and-tube heat exchanger (standard), plate heat exchanger (optional)
Turning gear: manual (standard), motor-driven (optional)
Governor: hydraulic governor (standard), E-H governor, electronic governor (optional)
Silencer: optional
Exhaust expansion joint: optional

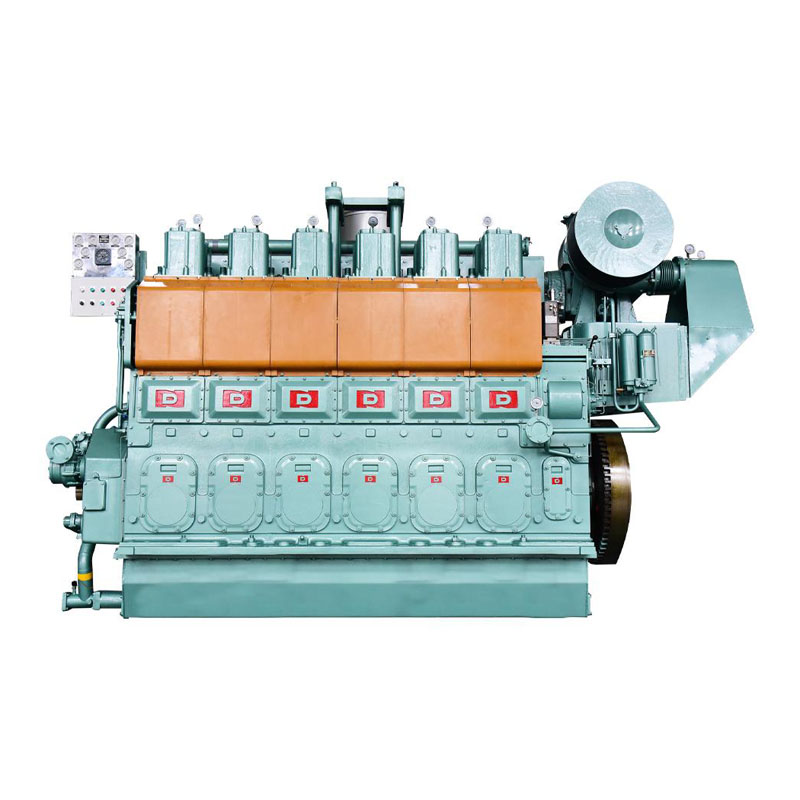

1103 to 3089 kW Marine Diesel Engine Parameters Table
Item |
Unit |
Data |
Type |
|
Four-stroke, water-cooled, in-line, turbocharged and intercooled, direct injection |
Bore×Stroke |
mm |
300×380 |
Number of Cylinders |
|
6 / 8 |
Displacement |
L |
161.2 / 214.9 |
Compression Ratio |
|
13.5 : 1 |
Speed |
rpm |
500 -750 |
SFOC |
g/kW·h |
≤182+5% (at 100% MCR) ≤180+5% (at 85% MCR) |
SLOC |
g/kW·h |
≤0.6+20% |
Starting Mode |
|
Compressed-air motor |
Direction of Rotation |
|
Starboard engine: clockwise(aft. end) Port engine: anticlockwise(aft. end) |
Minimum Height for Lifting Piston |
mm |
2600 (above crankshaft centerline) |
Outline Dimensions Length×Width ×Height |
mm |
6 cylinders approx.: 5430×1640×3170 8 cylinders approx..: 6360×1640×3470 |
Net Weight |
Kg |
24800 / 30000 |
Model Portfolio Table
Series |
Model |
MCR kW/Ps |
Speed rpm |
MEP Mpa |
Mean Piston Speed m/s |
NOX Emission Standard |
|
Starboard |
Port |
||||||
N6300
|
MN6300ZC6 |
MN6300ZC7 |
1103/1500 |
500 |
1.643 |
6.33 |
IMO Tier II |
MN6300ZC16 |
MN6300ZC17 |
1470/2000 |
600 |
1.825 |
7.60 |
IMO Tier II |
|
MN6300ZC18 |
MN6300ZC19 |
1323/1800 |
550 |
1.79 |
6.97 |
IMO Tier II |
|
MN6300ZC26 |
MN6300ZC27 |
1470/2000 |
750 |
1.46 |
9.50 |
IMO Tier II |
|
MN6300ZC28 |
MN6300ZC29 |
1618/2200 |
750 |
1.64 |
9.50 |
IMO Tier II |
|
MN6300ZC32 |
MN6300ZC33 |
1765/2400 |
750 |
1.75 |
9.50 |
IMO Tier II |
|
MN6300ZC36 |
MN6300ZC37 |
1838/2500 |
750 |
1.83 |
9.50 |
IMO Tier II |
|
MN6300ZC44 |
MN6300ZC45 |
2000/2720 |
750 |
1.99 |
9.50 |
IMO Tier II |
|
MN6300ZC48 |
MN6300ZC49 |
2206/3000 |
750 |
2.19 |
9.50 |
IMO Tier II |
|
MN6300ZC54 |
MN6300ZC55 |
2100/2856 |
750 |
2.09 |
9.50 |
IMO Tier II |
|
N8300 |
MN8300ZC |
MN8300ZC1 |
1103/1500 |
500 |
1.232 |
6.33 |
IMO Tier II |
MN8300ZC6 |
MN8300ZC7 |
1618/2200 |
500 |
1.808 |
6.33 |
IMO Tier II |
|
MN8300ZC8 |
MN8300ZC9 |
1765/2400 |
550 |
1.791 |
6.97 |
IMO Tier II |
|
MN8300ZC10 |
MN8300ZC11 |
2000/2720 |
600 |
1.861 |
7.60 |
IMO Tier II |
|
MN8300ZC12 |
MN8300ZC13 |
2206/3000 |
600 |
2.053 |
7.60 |
IMO Tier II |
|
MN8300ZC14 |
MN8300ZC15 |
2354/3200 |
650 |
2.023 |
8.23 |
IMO Tier II |
|
MN8300ZC16 |
MN8300ZC17 |
2500/3400 |
650 |
2.149 |
8.23 |
IMO Tier II |
|
MN8300ZC18 |
MN8300ZC19 |
2794/3800 |
720 |
2.167 |
9.12 |
IMO Tier II |
|
MN8300ZC20 |
MN8300ZC21 |
2941/4000 |
750 |
2.19 |
9.50 |
IMO Tier II |
|
MN8300ZC22 |
MN8300ZC23 |
3089/4200 |
50 |
2.30 |
9.50 |
IMO Tier II |
Remark: Product parameters and model portfolio are for reference only. Please contact the relevant personnel for official information on delivery time. The delivery scope for each model engine shall be performed as per the corresponding technical files.
